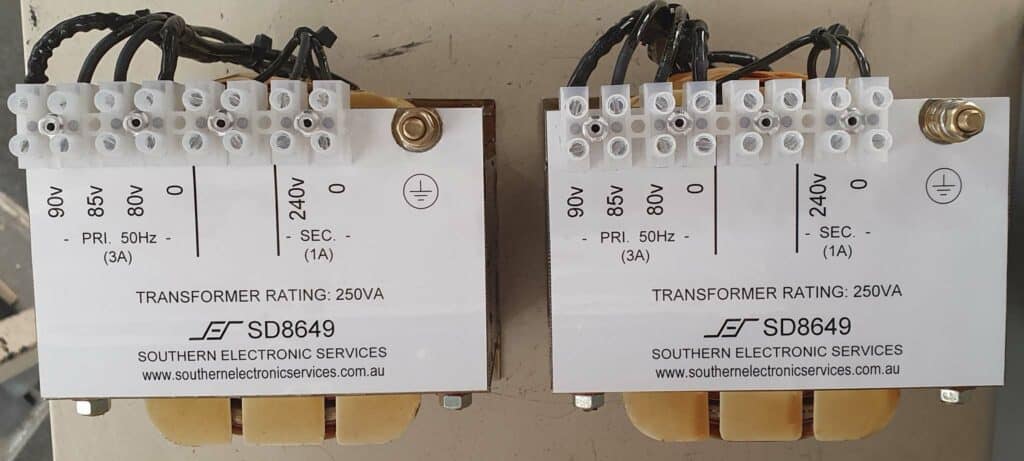

various 1000V single-phase isolation TFs

Reliable, fit-for-purpose solutions

Single-phase transformers are used in a huge variety of applications including industrial machinery, electrical circuitry, commercial equipment, domestic charging devices, and a multitude of other requirements. They are used to convert voltages, protect equipment, and compensate for voltage drops.

SES has been designing and constructing single phase transformers for over 45 years, and with this huge foundation of expertise, can supply you with a solution to suit your transformer needs.

Southern Electronic Services has more than 45 years’ experience in the design and manufacture of transformers in Melbourne. We stock a huge range of materials so that we can make a single-phase transformer to meet your specific requirements in a fast timeframe – usually within a few days, as we know that equipment downtime can put entire projects in jeopardy. So don’t risk it, speak to us today.

Get A Quote

The Benefits of an SES Single-Phase Transformer

  • SES will build you single-phase custom transformers to meet your specific project needs:
    • 100VA up to 600KVA power rating
    • Input voltage – designed to your needs, up to 3.3kV
    • Output voltage – designed to your needs, up to 3.3kV, multiple output windings if required
    • Insulation classes – Class F (150°C) & Class H (180°C) as standard
    • Low load regulation
    • Enameled copper windings
    • Screw terminals are standard for transformers, other termination options are available
    • Brass Earth stud provided on frame for connection
    • Electro-static screening if required
    • Tough varnish impregnation insulation coating
    • Choice of mounting brackets
    • Additional switchgear fitting if required
    • Choice of enclosure rating (open, IP23, IP65, other)

NOTE: A single-phase transformer cannot change frequency, convert single-phase current to three-phase current, stabilise fluctuating line voltage or increase power factor.

SES can build to your specific needs. Multiple input or output windings? No problem. Replacing an existing transformer and need it to fit exactly? Easy. Let’s work together to get the best solution for you.

Any More Questions?

To help us provide you with the best solution to your needs please contact us

Conatct us  Call Us – (03) 9706 4202

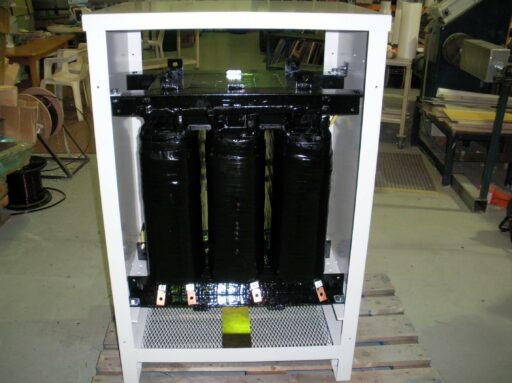

Drive Isolation TF – 200KVA
  • Multiple secondary windings available
  • Option for electro-static screen between primary and secondary windings
  • Available as open type with flying leads, printed circuit mounting or terminal blocks
  • Option to fuse on primary and/or secondary in most cases, depending on current
  • Tough varnish coating in clear or black
  • Choice of mounting brackets
  • Option for powder-coated steel (IP23 or other) enclosure for hard wiring, or with mains cord on input & output socket on outside of case
